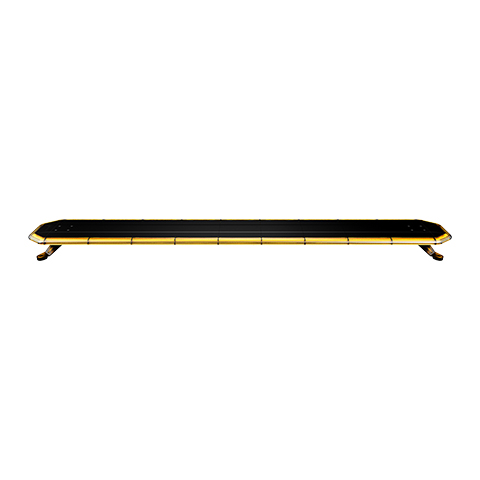

  • TB51 series full size LED light bar with 12 modules
  • TB51 series full size LED light bar with 14 modules
  • TB51 series full size LED light bar with 15 modules
  • TB51 series full size LED light bar with 16 modules
  • TB51 series full size LED light bar with clear lens power off
  • TB51 series full size LED light bar top view
  • TB51 series full size LED light bar Red Blue color lighting effect
  • TB51 series full size LED light bar plug and play module
  • TB51 series full size LED light bar mounted on car patrol vehicles

TB51 Full Size Lightbar

Overview

TB51 series full-size light bars are ultra-thin with low air resistance. They are designed to provide versatile and powerful warning illumination for police patrol vehicles, law enforcement SUVs, smaller tow trucks, smaller construction vehicles, and more. They can be mounted either permanently to the vehicle or using an optional roof mounting kit.

Features

  • ECE R10 (EMC), SAE J845 Class 1, and CISPR 25 Class 3 certified, with virtually no RFI/EMI radiation
  • Fully encapsulated for moisture, vibration, and corrosion resistance
  • High-intensity LEDs provide consistent warning performance
  • The sturdy polycarbonate cover and lens are finely molded with a streamlined appearance
  • Innovative thermal design reduces stress on LEDs during extended periods of use
  • Standard mounting feet with a swiveling angle of -/+5° for adjusting the lightbar
  • 12 optional flash patterns can be customized
  • 360-degree light coverage with strong overall visual effects
  • Plug-and-play module
  • Ultra-thin with low air resistance
  • Optional Remote Controller
  • 2-year warranty
Get A Quote
  • Specifications
  • Dimensions
  • Approvals ECE R10/CISPR 25 Class3/ECE R65 Class 1/SAE J845 Class 1
    Module length 6 inches
    Operating voltage 12/24V
    Operating temperature  -30℃~ +65℃
    Wires Red: Positive(+)
    Black: Negative(-)
    Yellow: Pattern Switch
    Cable length 5000mm cable
    Base Extruded aluminum
    Cover PC
    Lens PC
    Mounting Bracket
    Waterproof IP67
    Net weight 4 modules:3,590g/PC(bracket included); Each additional module,  increase in weight 840g.
    Packing (7 modules) Carton Size: 1180x300x55 mm
    Packing (8 modules) Carton Size: 1340x300x55 mm
    Qty.: 1 set/Carton
    Warranty 2 Years
    Remarks Lens/ Takedowns/ Alleys can be customized.
  • 8 Modules Dimensions (mm) :
